Indications for IPS e.max Anterior Crowns

All Ceramic Crown Preparation Guide

IPS e.max® and Zirconia Crown Preparation Protocols

At Bayshore Dental Studio, predictable ceramic restorations begin with proper preparation design. Whether fabricating an anterior IPS e.max restoration or a posterior zirconia crown, preparation geometry directly affects strength, esthetics, marginal integrity, and long term performance.

Below is a comprehensive preparation guide based on ideal reduction parameters for lithium disilicate and zirconia restorations.

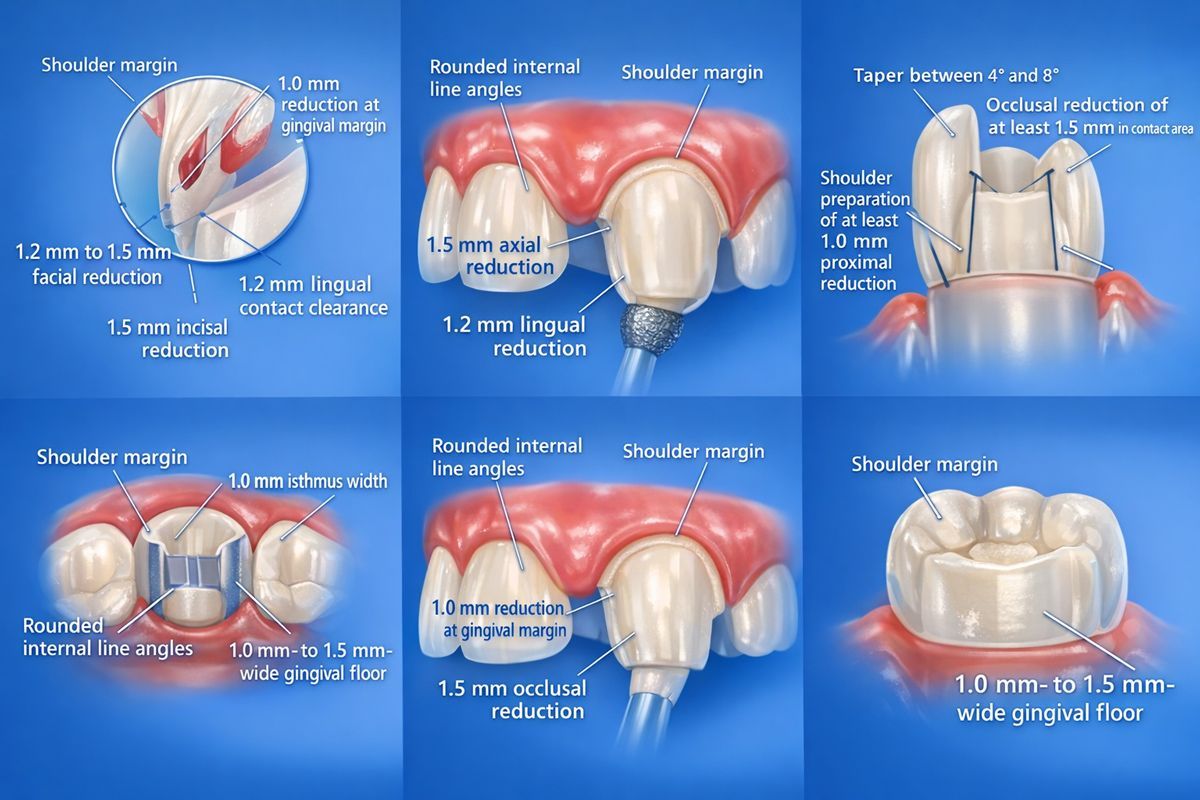

Anterior Crown Preparation

IPS e.max Lithium Disilicate

IPS e.max restorations require adequate ceramic thickness to deliver both strength and lifelike translucency.

Incisal reduction should measure 1.5 to 2.0 mm to provide proper strength and allow natural layering effects without over contouring.

Facial reduction should be 1.2 to 1.5 mm using a two plane reduction technique. This maintains natural tooth anatomy and ensures even ceramic thickness.

Lingual reduction should be 1.0 to 1.5 mm with sufficient clearance in functional movements.

A rounded shoulder margin is recommended with a minimum width of 1.0 mm at the gingival margin. All internal line angles must be rounded to reduce stress concentration within the ceramic.

Taper should remain conservative and controlled to maintain retention while avoiding over preparation.

When layered or pressed ceramic margins are preferred in combination with zirconia frameworks, a definitive 90 degree shoulder preparation can enhance gingival esthetics.

Posterior Crown Preparation

Zirconia and Full Coverage Ceramic

Posterior restorations require strength driven preparation design while maintaining adequate occlusal clearance.

Occlusal reduction should measure at least 1.5 mm in contact areas to prevent premature fracture and allow proper material thickness.

Axial reduction should measure approximately 1.2 to 1.5 mm depending on material selection.

A shoulder preparation of at least 1.0 mm is recommended at the gingival margin and in proximal areas.

The gingival floor should be 1.0 to 1.5 mm wide and flat to support margin stability and accurate seating.

Internal line angles must be rounded throughout the preparation to reduce internal ceramic stress.

Taper between 4 and 8 degrees is ideal for optimal retention and resistance form.

For inlay or onlay style preparations, maintain a 1.0 mm isthmus width and 1.0 mm depth at the isthmus while ensuring rounded internal transitions.

Minimum coronal length should be at least 4.0 mm to provide adequate retention form for conventional cementation cases.

Conventional Cementation Considerations

When planning for conventional cementation, ensure adequate axial wall height and proper taper to maintain mechanical retention.

A flat ended tapered diamond bur is ideal for establishing a clean shoulder margin.

Rounded internal line angles remain critical even in conventionally cemented cases to reduce stress points and improve ceramic longevity.

Key Preparation Principles

Maintain uniform reduction throughout the preparation.

Avoid feather edge margins.

Ensure functional clearance in protrusive and lateral movements.

Capture margins clearly during impression or digital scanning.

Respect biological width and maintain smooth margin transitions.

Why Proper Preparation Matters

Proper preparation design improves marginal adaptation, reduces fracture risk, enhances shade accuracy, and supports long term clinical success.

When these guidelines are followed, IPS e.max and zirconia restorations fabricated by Bayshore Dental Studio deliver exceptional esthetics, durability, and predictable outcomes.

For clinical support or case planning assistance, contact Bayshore Dental Studio at 877 540 4150.

Precision begins with preparation.
